Spin

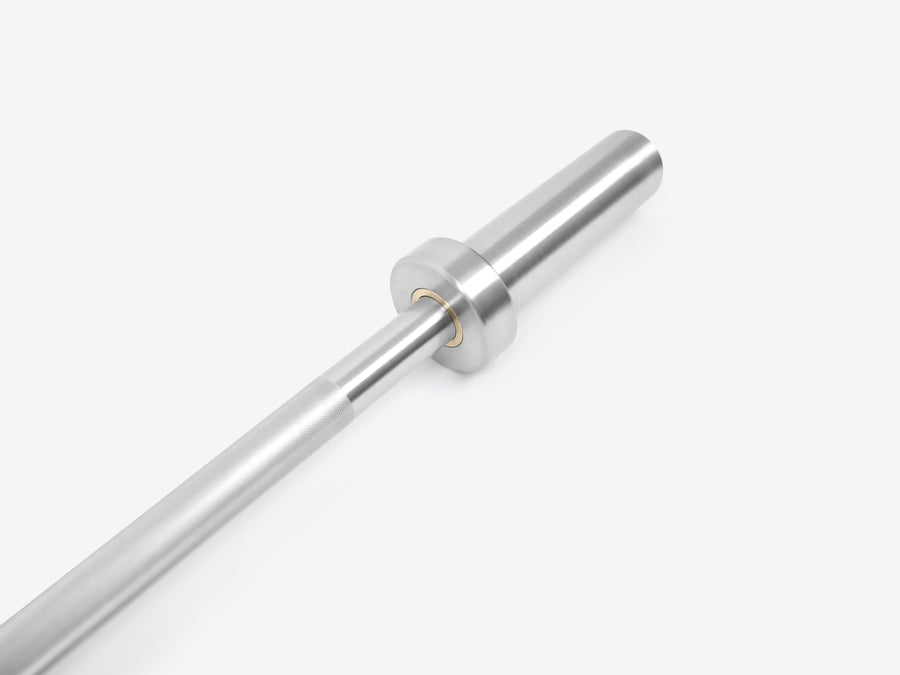

Snap-ring mechanism with double bearings
The sleeves turn on double bearings in a snap-ring mechanism, so rotation stays smooth. Each one is smooth and 50 mm across, with 165 mm of loadable length.
LUXIAOJUN 1.2M Straight Bar-Hard Chrome (10kg)
$145.00
Sale price
$145.00
Regular price
$0.00
Skip to product information
LUXIAOJUN 1.2M Straight Bar-Hard Chrome (10kg)
$145.00
Sale price
$145.00
Regular price
$0.00

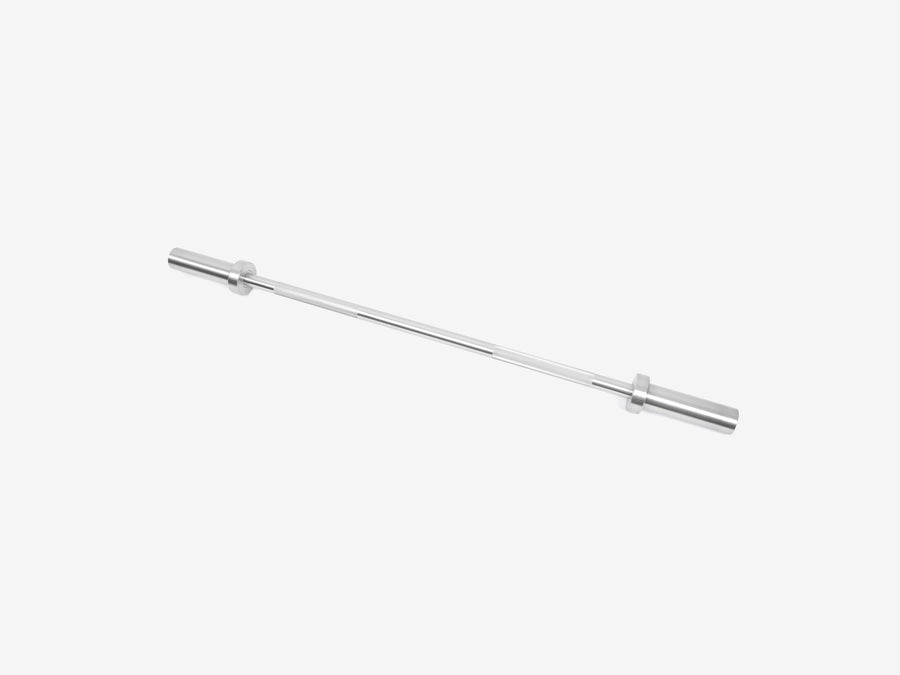

The LUXIAOJUN 1.2M Straight Bar is a compact, versatile training bar built for home gyms and accessory work like curls, rows, and presses. At just 1200mm (47.24") long, it's space-saving without sacrificing performance, making it a great fit for tighter training areas.
It weighs a true 10kg (22 lbs) with a tight tolerance for consistent training, and features a 28mm shaft with medium knurling (0.3 to 0.35mm depth, 1.2mm width) for a secure, comfortable grip. The shaft length between collars is 820mm (32.28"), and the smooth 50mm sleeves fit all standard 2" Olympic plates, with a loadable sleeve length of 165mm (6.5") per side.
A snap-ring mechanism with double bearings keeps rotation smooth, and the bar carries a 300 lb weight capacity, well suited for accessory lifts and general strength training. Both the shaft and sleeves feature a hard chrome finish for solid corrosion resistance and easy upkeep. Backed by a lifetime warranty against manufacturing defects, this bar is a reliable, space-conscious choice for dedicated training.
- Bar weight
- 10 kg 22 lb
- Length
- 1200 mm 47.24 in
- Shaft
- 28 mm
- Capacity
- 300 lb
Shaft, sleeves and knurl
820mm between collars32.28 in of shaft
165mm loadableper sleeve, 6.5 in
50mm sleevesstandard 2 in plates
1.2mm knurl width0.3 to 0.35 mm deep
A closer look
Spin, grip and finish.
Grip
Medium knurl on a 28 mm shaft

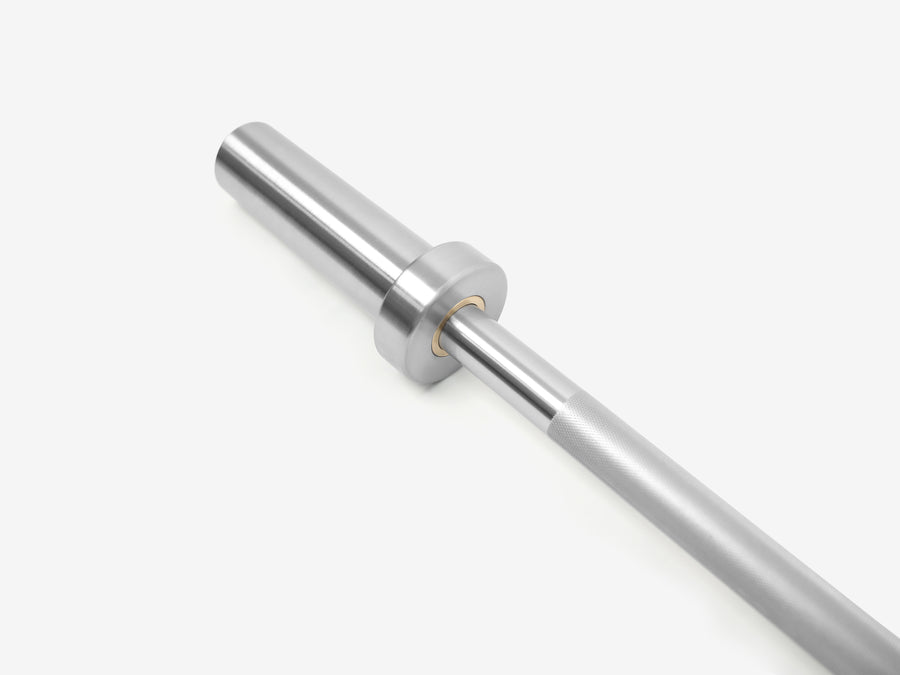

The knurl is 1.2 mm wide and 0.3 to 0.35 mm deep, secure to hold and still comfortable through curls, rows and presses. The 28 mm shaft runs 820 mm between the collars.
Finish
Hard chrome, shaft and sleeves
Both the shaft and the sleeves carry a hard chrome finish. That gives solid corrosion resistance and keeps upkeep easy.

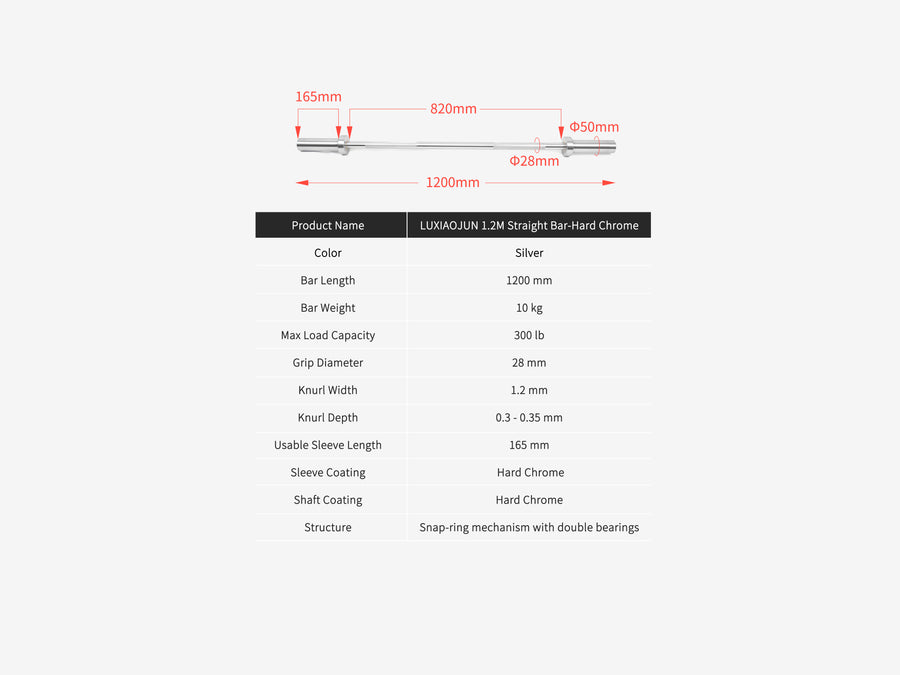

Specification
| Bar weight | 10 kg (22 lb) |
|---|---|
| Overall length | 1200 mm (47.24 in) |
| Shaft between collars | 820 mm (32.28 in) |
| Shaft diameter | 28 mm |
| Sleeve diameter | 50 mm |
| Loadable sleeve length | 165 mm (6.5 in) per side |
| Weight capacity | 300 lb |
| Knurl | Medium |
| Knurl width | 1.2 mm |
| Knurl depth | 0.3 to 0.35 mm |
| Sleeve rotation | Snap-ring mechanism with double bearings |
| Shaft finish | Hard chrome |
| Sleeve finish | Hard chrome |
| Plate fit | Standard 2 in Olympic |
| Color | Silver |
Warranty
Lifetime warranty against manufacturing defects.
Every LUXIAOJUN product carries a lifetime warranty against manufacturing defects. If a fault in materials or workmanship appears, we put it right for as long as you own the product.
The warranty covers how the product was made, not how it was used. Normal wear from training, cosmetic marks, and damage caused by misuse, modification, improper assembly or improper storage fall outside it.
To start a claim, contact us with your order number and photographs of the issue.
Before you buy
How much room does it need?
The bar is 1200 mm long, which is 47.24 in, with 820 mm (32.28 in) of shaft between the collars. It is a short bar meant for tighter training areas, so measure your rack or your space against both numbers before you order.
How much weight can I put on it?
The bar carries a 300 lb weight capacity, with 165 mm (6.5 in) of loadable sleeve per side. It is well suited to accessory lifts and general strength training.
Will my plates fit?
The sleeves are 50 mm and smooth, so standard 2 in Olympic plates go on.
Do the sleeves spin?
Yes. A snap-ring mechanism with double bearings keeps the rotation smooth.
What does the bar actually weigh?
A true 10 kg, or 22 lb, held to a tight tolerance so it stays consistent session to session.
